How to evaluate the load-bearing capacity of power poles

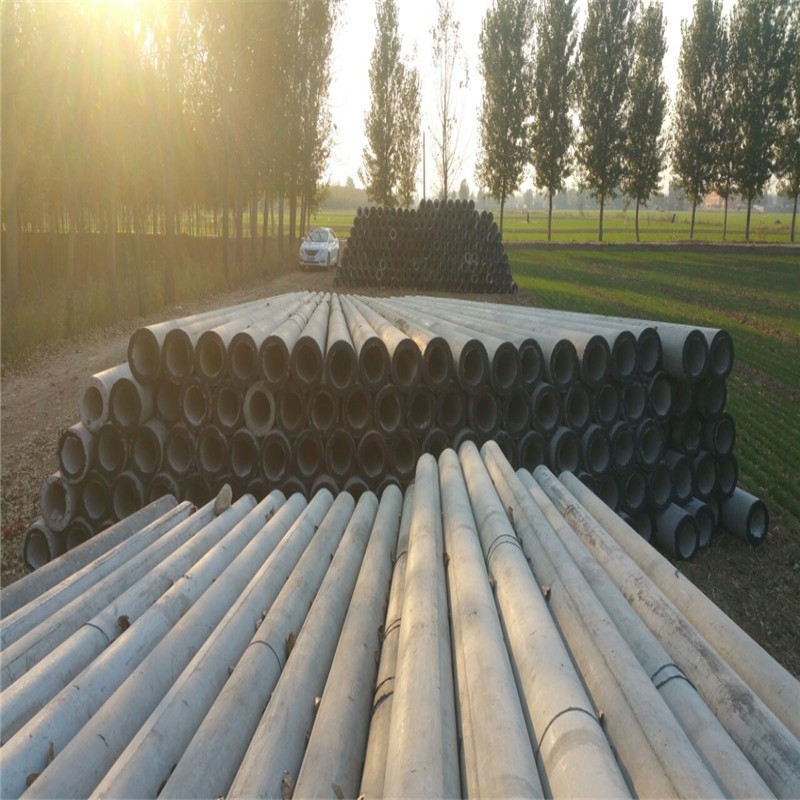

Many users are most concerned about "how much force this pole can withstand" when purchasing or using cement utility poles. But as a professional cement pole manufacturer, we must point out that evaluating the load-bearing capacity of power poles is not simply about looking at a maximum tensile value. It is a systematic engineering that involves mechanical calculations, soil conditions, usage environment, and safety redundancy.

A utility pole is essentially a cantilever beam, and its core bearing capacity is not vertical compression resistance, but bending resistance, which is called the design bending moment in professional terminology and is measured in kiloNewton meters. The national standard classifies electric poles into different load levels based on the magnitude of the bending moment. When evaluating, the first thing to consider is the reinforcement method of the pole - prestressed, non prestressed, or partially prestressed, as well as the wall thickness. Prestressed steel bars generate pre stress through tensioning, which can effectively counteract the tensile stress generated by external loads and greatly improve crack resistance. The higher the design bending moment value, the greater the lateral thrust that the pole can resist. Users must calculate the maximum bending moment required based on the meteorological conditions and span of the line design when selecting, and leave at least 20% margin.

There is a pair of easily overlooked "double threshold" indicators in the evaluation process, namely crack load and ultimate load. The national standard clearly stipulates two red lines: crack load is the load value when the first crack with a width exceeding 0.2 millimeters appears on the surface of the pole, representing the critical point at which the pole begins to work non elastically; The ultimate load is the maximum load that a pole can withstand when it reaches a state of failure. Scientific evaluation must simultaneously verify these two values. The ultimate load of a high-quality electric pole should be more than 1.5 times the crack load, which means that under extreme conditions such as typhoons or icing, the pole is allowed to have minor cracks, but it will never suddenly break, buying valuable time for repair. If the manufacturer only provides the ultimate bearing capacity and avoids discussing crack loads, it is not rigorous.

It is worth emphasizing that no matter how powerful the pole is, if the foundation is not solid, everything will return to zero. The bearing capacity of an electric pole is the coupled system between the pole body and the foundation. When evaluating, it is necessary to consider the soil bearing capacity - the significant difference in passive soil pressure between clay, sand, or rock foundations; The burial depth ratio is usually about one sixth of the length of the pole, but it needs to be rechecked based on the overturning moment; For high bending moment poles, whether to install a chassis and chuck directly affects the overall anti overturning ability. Many accidents are not caused by the breakage of electric poles, but by the tilting of the entire pole, which is a typical consequence of inadequate foundation assessment. Therefore, manufacturers should provide recommended burial depths and foundation treatment methods for different soil conditions.

In addition, the carrying capacity is not a static number, but a curve that decays over time. Environmental reduction factors must be included in the evaluation: salt spray along the coast or chloride ions in chemical plants can corrode steel bars, causing rust expansion and cracking, and the bearing capacity can decrease by 1% to 3% annually; Moisture seeps into microcracks in northern regions, and repeated freeze-thaw cycles cause concrete to become brittle and loose; The accumulation of small deflection caused by long-term wind vibration may also reduce the prestressing effect. A professional evaluation report will provide a prediction of bearing capacity attenuation within the design service life, and recommend regular monitoring of crack width and testing of steel reinforcement protection layer.
